# CS184 Section 1 Introduction/Linear Algebra

Brandon Wang
August 28, 2012
Material adapted from Fu-Chung Huang, Ravi Ramamoorthi, and Carlo Sequin.

• brandonwang@berkeley.edu
• OH: M 1-2pm in 651 Soda (6th Floor Alcove)
• Today's OH: W 1-2pm in 510 Soda (5th floor)
• HW0a and HW0b due this week! (If you are having issues, come to my OH or use the computers in 330 Soda)
• These slides will be posted on brandonwang.net

### Today

• (Re) Introduction to Computer Graphics
• Review on Linear Algebra

### Computer Graphics

Source: Disney/Pixar Toy Story 3

### Computer Graphics

Source: Blizzard Diablo 3

### Computer Graphics

The Foundry Showreel

The Making of Tron Legacy

### Other Applications

• Simulation
• Fabrication
• Vision
• Art
• Happiness
• ...etc
Computer graphics are graphics created using computers and, more generally, the representation and manipulation of image data by a computer with help from specialized software and hardware.
Computer graphics are programmed pretty pictures.

### Our class

We're primarily focusing on the Computer Science part of 3D Computer Graphics.

For our assignments, we'll be using C++, OpenGL, and GLSL.

What we learn can be extended to any language (Python, Java, Scheme...), and we learn the underlying theory behind it all.

### OpenGL

In HW0, you will be dealing with OpenGL!

Why do we have a HW0? To make sure it can compile and run on your computer

(It's highly hardware dependent)

Why's that? It uses your GPU. (More on this later in the course)

glUniform, etc

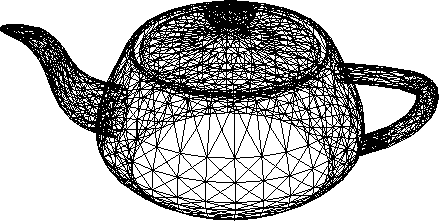

### Modeling

 Modeling Animation Rendering
v -3.000000 1.800000 0.000000
v -2.991600 1.800000 -0.081000
v -2.991600 1.800000 0.081000
v -2.989450 1.666162 0.000000
...
Usually created by artists (UCBUGG), but can be scanned, math function (on an assignment)

### Animation

 Modeling Animation Rendering

(Sometimes optional)

...But usually artists. (UCBUGG)

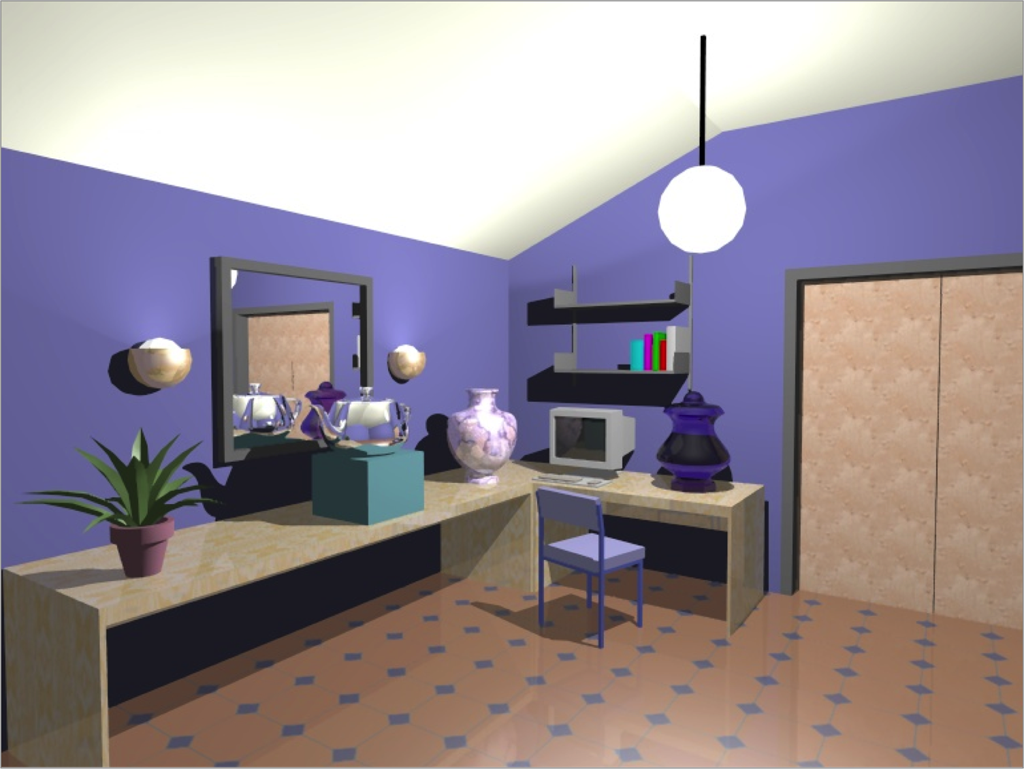

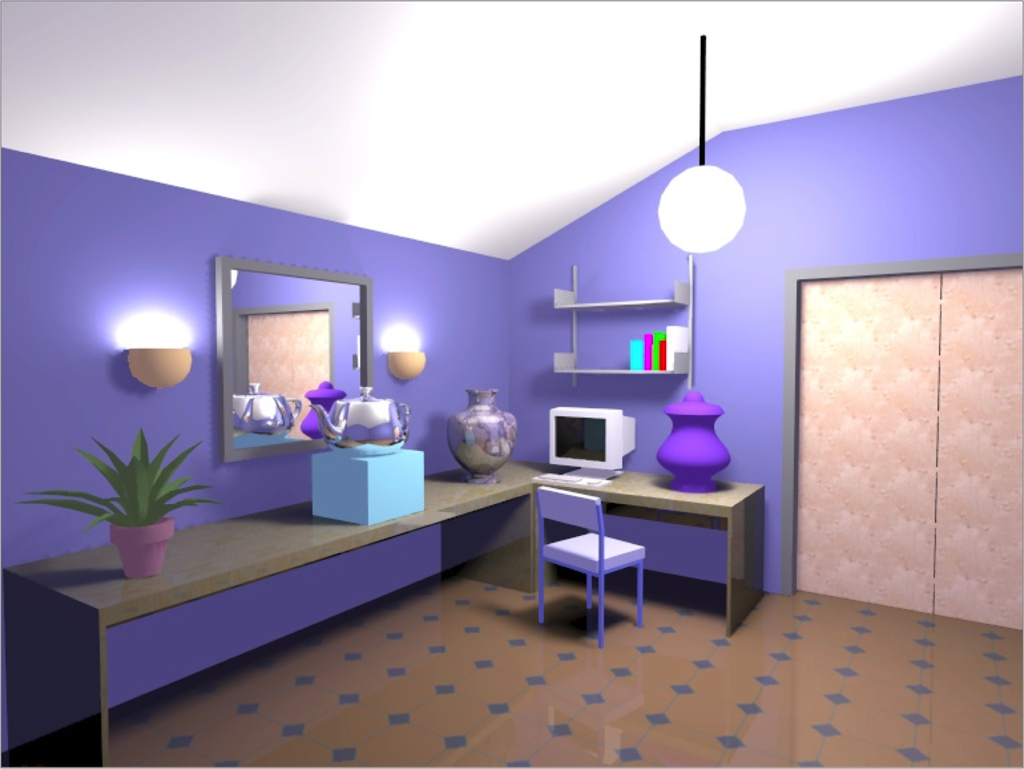

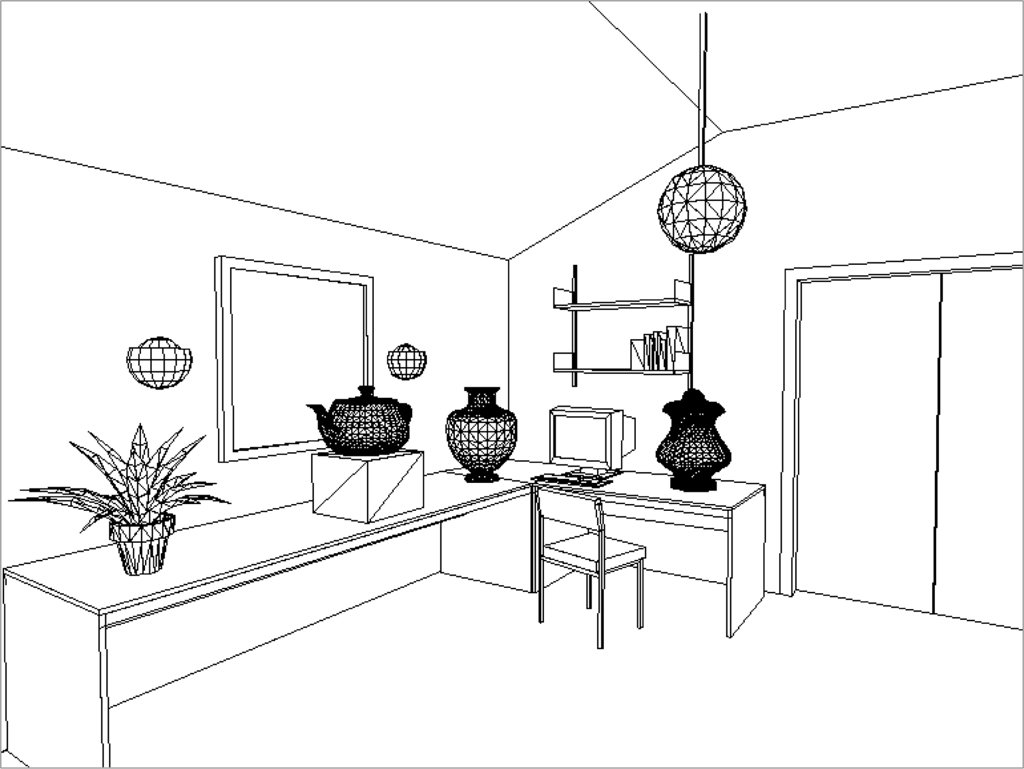

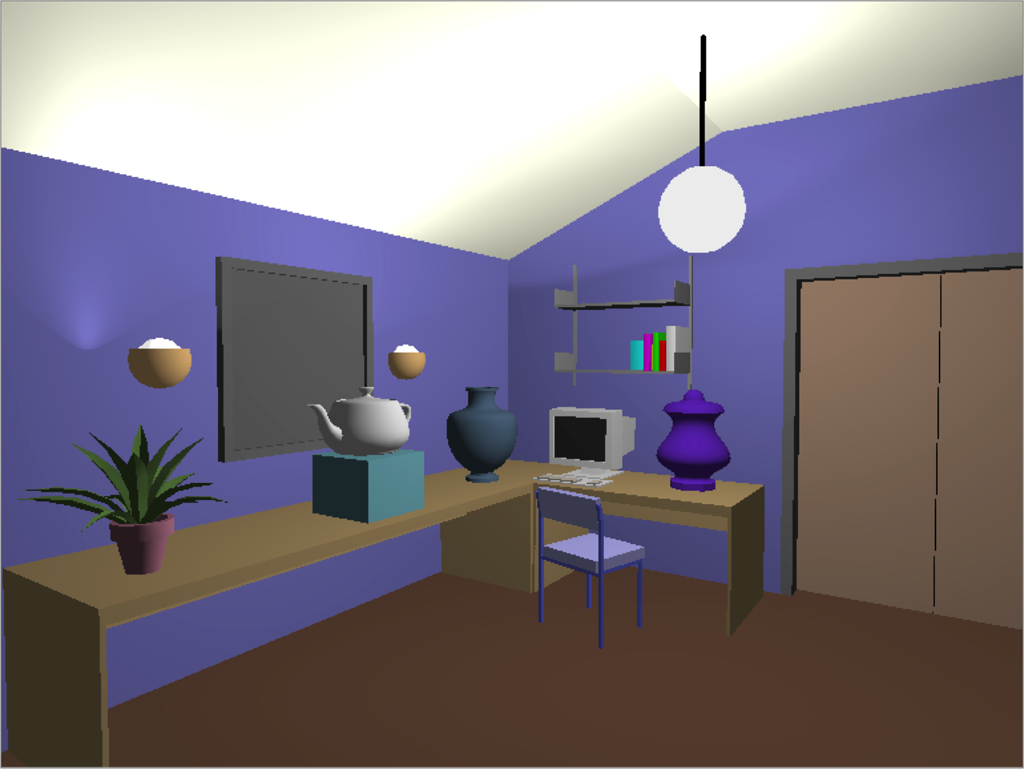

### Rendering

 Modeling Animation Rendering

Source: CS184 Fu-Chung Huang

### Linear Algebra: Vectors

• Vectors encode length and direction.
• Use this to store offsets, displacements, "locations."
• Usually written as
\vec{a}
• Magnitude is usually written as
||a||
• We will (mostly) be using Cartesian Coordinates:
\vec{a} = x_a\vec{x} + y_a\vec{y} + z_a\vec{z}

\vec{a} = \left( \begin{matrix} x_a\\ y_a \end{matrix} \right)

\vec{a}^T = \left( \begin{matrix} x_a & y_a \end{matrix} \right)

||\vec{a}|| = \sqrt{x^2+y^2}

• In Cartesian Coordinates, add up the components:
\vec{a}+\vec{b} = \left( \begin{matrix} x_a\\ y_a \end{matrix} \right) + \left( \begin{matrix} x_b\\ y_b \end{matrix} \right)
• Think of it using the parallelogram rule (pictured)

### Linear Algebra: Dot (Scalar) Product

• \vec{x}\cdot\vec{y} = ||x||\ ||y|| \cos{\theta}
• \vec{a} \cdot (\vec{b}+\vec{c}) = a\cdot b + a \cdot c
• (k\vec{a})\cdot \vec{b} = \vec{a}\cdot (k\vec{b}) = k(\vec{a}\cdot \vec{b})

### Linear Algebra: Cross (Vector) Product

• Use the right-hand rule
• \vec{a} \times \vec{b} = -\vec{b} \times \vec{a}
• ||\vec{u} \times \vec{v}|| = ||\vec{u}||\ ||\vec{v}||\ \sin{\phi}
• In 3D:
\vec{u}\times\vec{v} = (u_yv_z-u_zv_y)\vec{x}+(u_zv_x-u_xv_z)\vec{y}+(u_xv_y-u_yv_x)\vec{z}

### Linear Algebra: Orthonormal Bases/Coordinate Frames

• In
\mathbb{R}^n
: Set of n real-valied orthonormal vectors
• Any vector in
\mathbb{R}^n
can be represented by a linear combination of these vectors
• In
\mathbb{R}^3
(3D), we commonly refer to them as x, y, z.

### Linear Algebra: Matrices

\left( \begin{matrix} 1 & 2 \\ 3 & 4 \\ 5 & 6 \end{matrix} \right)

• An array of mxn numbers. (m rows, n columns)
• \left( \begin{matrix} a & b \\ c & d \end{matrix} \right) + \left( \begin{matrix} e & f \\ g & h \end{matrix} \right) = \left( \begin{matrix} a+e & b+f \\ c+g & d+h \end{matrix} \right)

### Linear Algebra: Matrix Multiplication

(AB)_{i,j} = \sum_{k=1}^p A_{ik}B_{kj}

• A=\begin{bmatrix}a&b\\c&d\end{bmatrix}
,
B=\begin{bmatrix}e&f\\g&h\end{bmatrix}
• AB=\begin{bmatrix}a&b\\c&d\end{bmatrix}\begin{bmatrix}e&f\\g&h\end{bmatrix}=\begin{bmatrix}ae+bg&af+bh\\ce+dg&cf+dh\end{bmatrix}

### Linear Algebra: Matrix Transpose

• \begin{bmatrix} 1 & 2 \end{bmatrix}^{\mathrm{T}} \!\! \;\! = \, \begin{bmatrix} 1 \\ 2 \end{bmatrix}.
• \begin{bmatrix} 1 & 2 \\ 3 & 4 \end{bmatrix}^{\mathrm{T}} \!\! \;\! = \, \begin{bmatrix} 1 & 3 \\ 2 & 4 \end{bmatrix}.
• \begin{bmatrix} 1 & 2 \\ 3 & 4 \\ 5 & 6 \end{bmatrix}^{\mathrm{T}} \!\! \;\! = \, \begin{bmatrix} 1 & 3 & 5\\ 2 & 4 & 6 \end{bmatrix}. \;

### Linear Algebra: Identity Matrix

I_1 = \begin{bmatrix} 1 \end{bmatrix} ,\ I_2 = \begin{bmatrix} 1 & 0 \\ 0 & 1 \end{bmatrix} ,\ I_3 = \begin{bmatrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end{bmatrix} ,\ \cdots ,\ I_n = \begin{bmatrix} 1 & 0 & \cdots & 0 \\ 0 & 1 & \cdots & 0 \\ \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & \cdots & 1 \end{bmatrix}

### Linear Algebra: Transformations

• Rotation:
R(\theta) = \begin{bmatrix} \cos \theta & -\sin \theta \\ \sin \theta & \cos \theta \\ \end{bmatrix}
• Scaling:
S_v = \begin{bmatrix} v_x & 0 \\ 0 & v_y \\ \end{bmatrix}.
• Useful because this is how we will put things in place, and move them around
• Without matrices, we would have a teapot at the origin, and we couldn't rotate it or move it at all!
• More in HW1

### Linear Algebra: Transformations

(Credit to XKCD and Brian Maissy for posting it on Piazza... last semester)

### Linear Algebra: Questions

1. Find the length of vector

\vec{x} = \left( \begin{matrix} 3\\-6\\2 \end{matrix} \right)

||\vec{x}|| = \sqrt{3^2+(-6)^2+2^2} = 7

2.

What is

\vec{x}\times\vec{z}

-\vec{y}

### Linear Algebra: Questions

Given two

\mathbb{R}^2
vectors,
\vec{i}
and
\vec{j}
,
\vec{i}\cdot\vec{i}=1, \vec{i}\cdot\vec{j}=0, \vec{j}\cdot\vec{j}=1

1. Does a vector
\vec{k}
exist, such that
\vec{k}\neq\vec{i}
,
\vec{k}\cdot\vec{k}=1
,
\vec{k}\cdot\vec{j}=0
? What is it? How many are there?
2. Does a vector
\vec{k}
exist, such that
\vec{k}\cdot\vec{i}=0
,
\vec{k}\cdot\vec{k}=1
,
\vec{k}\cdot\vec{j}=0
? What is it? How many are there?
3. Do the answers change if
\vec{i}
and
\vec{j}
are in
\mathbb{R}^3
?

### Linear Algebra: Questions

Given

p_1, p_2, p_3 \in \mathbb{R}^2

vectors, consider the cross product
n = (p_2-p_1)\times(p_3-p_1)

What does this vector mean geometrically?

Let

p
be any point in the plane containing
p_1,p_2,p_3
. What is the geometric relationship between
p-p_1
and
n
(look at their dot product)?

### Linear Algebra: Questions

Write the parametric equation for a line through points p1 and p2. Now write the parametric equation for a plane through points p1, p2, and p3.

Show how to restrict these parametric equations to specify only the points on the line segment between p1 and p2 for the line, and only the points inside the triangle formed by p1, p2, and p3 for the plane.

### Thanks!

• Rendering pictures by Fu-Chung Huang
• Math review adapted from Ravi Ramamoorthi's slides and Wikipedia
